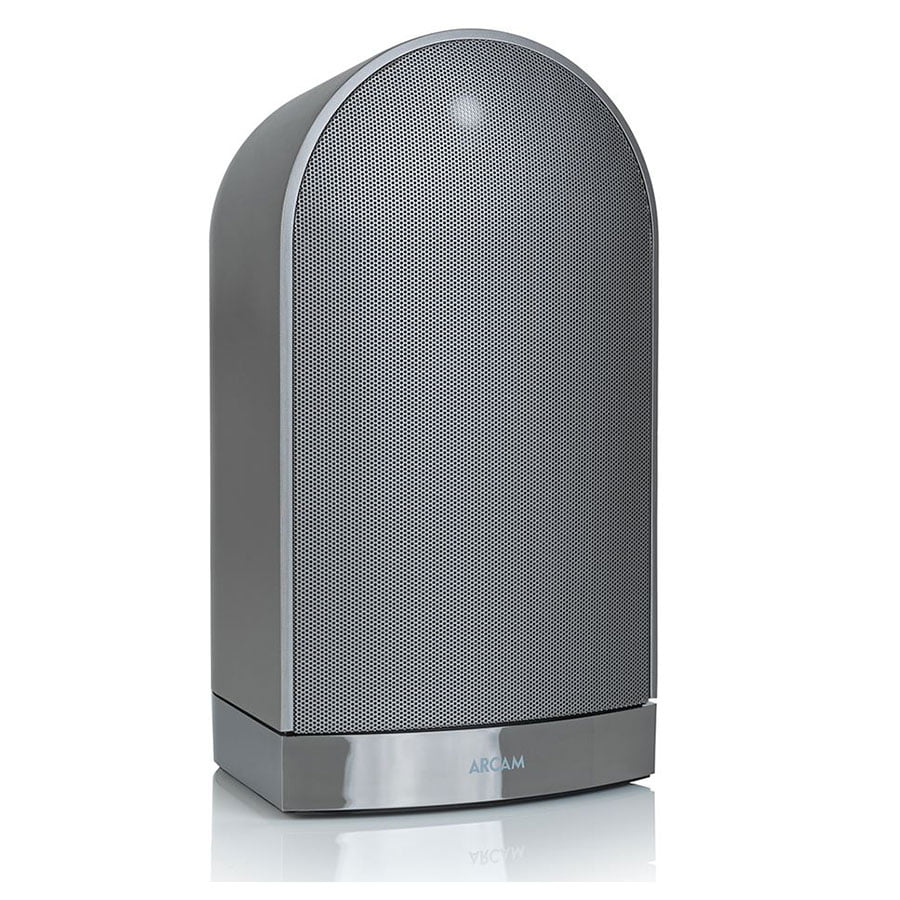

Arcam Muso inkl. golvstativ (demo-ex)

Ease of placement and effortless high quality sound are the signature of the new Solo muso speaker.

The main drive unit utilises a proprietary paper-pulp and fibre sandwich cone resulting in an optimally light yet stiff cone. The drive unit’s chassis is die-cast, which has been used over the more common and cheaper steel chassis as it allows for thinner supporting structures which in turn allow sound to pass from the back of the speaker cone to the inside of the cabinet more easily and reduces reflected sound back towards the cone, which would add distortion.

Within the cabinet, speaker wadding further damps internal reflections and increase the apparent volume by slowing air movement which extends the low frequency response. Additionally, the walls are lined with adhesive vibration damping material to greatly reduce and sound being radiated from the cabinet.

The muso tweeter is a pure aluminium dome tweeter. As with the main driver, sound passes from the tweeter both forwards and backwards. When travelling backwards through the tweeter, the sound reaches the back surface of the tweeter and is radiated into the cabinet. To combat this, the rear surface of the tweeter is damped, significantly reducing this distortion and improving the clarity of the sound, particularly the fine detail.

By employing a front-facing port, the muso speaker can be used close to walls without interfering with the port response. To achieve bass extension without “chuffing” a long port of large cross sectional area is needed. As the muso cabinet is not large enough to accommodate a long port, the port is bent internally and is custom moulded with thick side walls to support itself with minimal vibration even when the speaker is playing at loud volumes.

• Two-way bass reflex loudspeaker system
• Front ported design allows positioning close to walls or in cabinet fixtures
• Combined aluminium / steel enclosure – extremely "dead" cabinet
• Resin damped metal to metal bonding with no visible fixings
• "SDA" sound dead Aluminium further dampens cabinet resonance
• 25mm (1") Ultra light Aluminium dome magnetically screened tweeter
• Aluminium tweeter dome for ultra light weight and maximum stiffness
• Magnetically mounted, acoustically transparent tweeter sub grill
• 85mm (3.5") Polymer / Aluminium cone magnetically screened woofer
• Vented pole piece woofer magnet offering lower distortion
• Smooth flow, flared "L shape" port offers extended bass response
• 8 component crossover with air-cored HF inductor on Glass Fibre PCB

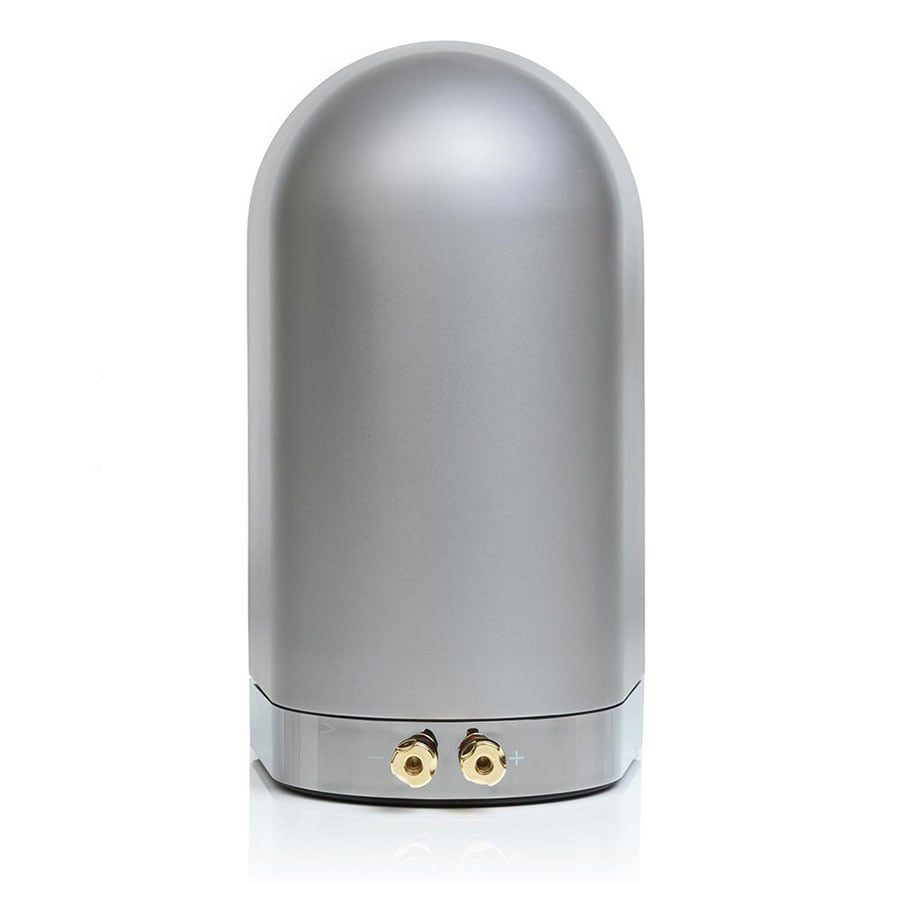

• Gold plated 4mm binding posts
• Compliant rubber isolation mat included
• Dimensions (W x D x H): Muso – 120 x 155 x 230mm (4.7 x 6.1 x 9.1 inches)
• Weights: Muso – 3Kg / 6.6lbs (3.3Kg / 7.3lbs packed)
